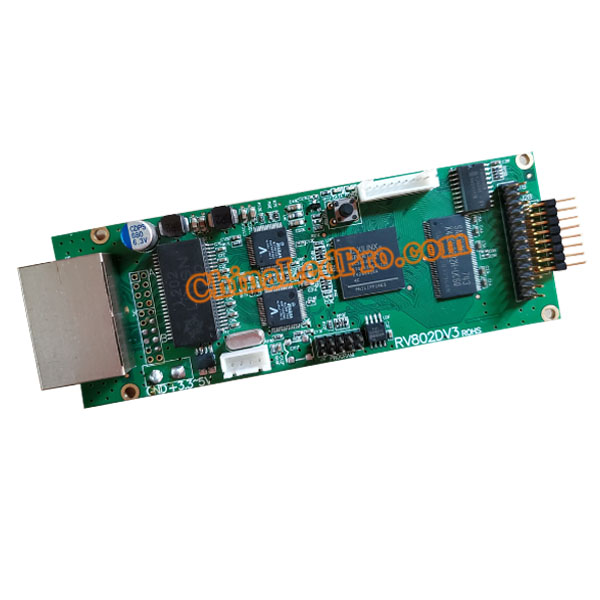

Linsn RV802DV3 (RV802D) mini receiving card is specially designed for LED screens with small-size cabinets. Apart from the differences in size and output interface, all the other functions are the same as the RV801D.
Product features:
Intelligent identification |
Intelligent identification procedures can identify double color, full color, virtual, lighting, etc; all kinds of various drivers board scanning mode and various kinds of signal, recognition rate reached 99%. |
Correction function: |
By point correction support single point, 2*2 points, 4*4 points, and 8*8 point four correction mode, the biggest calibration 6144 points/module, red, green, blue each level of 256; By card (cabinet) used to display the between the correction of off-color correction, red, green, blue each level of 256. |
The refresh rate arbitrary setting, |
set arbitrarily from 10 Hz refresh rate-3000 Hz, phase-lock function to make the screen refresh lock the computer |
65536 level (64 K) gray arbitrary |
According to the LED display situation, customers can arbitrarily set from no gray to level 65536 (64 K), allowing your screen to achieve the best display effect. |
Double cable heat backup function: |
The A and B two ports of receiving card can be used to input or output, can be used for two computers to control a screen at the same time, when one computer has problems, another one automatically replaces it, also can be used for one computer with double cable control, when one cable has problems, another one automatically takes it over, making the normal work of the screen to get maximum security. |
Control area: |
Full color 4096(4K) gray level 180HZ refresh rate,max controls 512*128, twice than the sixth generation product, full color static 16384(16k)gray level 300HZ, max controls 160*64(note: with a driving board, it can be on high 30MHZ clock) |
Display independent broadcasting |
Display independent broadcasting can be through the shortcut key, fast switching. |
Many screens synchronization |
Support a piece of sending card controlling pieces screens, |
Program online upgrade function: |
If the screen receiving card program needs to be upgraded, |
256 level automatically brightness adjustment: |
A level 256 automatic adjustment function makes display brightness adjustment more effective. |
Test function: |
Receiving card integration test function, need not take send card |
Break the traditional ideas |
No dial code switch design, all Settings through the computer. |
Long-distance transmission: |
Maximum transmission 170 meters (measured), ensure transmission 140 meters. |
Supporting software: |
equipped with a real-time temperature and humidity display. |
RV802D Pin Assignment:
J5 output port: 26 pins (mainly used for serial LED changing and LED strip ) parallel
1 D C 2
3 B A 4
5 LAT CLK 6
7 OE GND 8
9 R8 R7 10
11 R6 R5 12
13 R4 R3 14
15 R2 R1 16
17 GND R16 18
19 R15 R14 20
21 R13 R12 22
23 R11 R10 24
25 R9 GND 26
J6 output port: 16 pins (mainly used for parallel LED changing and LED strip )
1 D C 2
3 B A 4
5 OE CLK 6
7 LAT RD1 8
9 GD1 BD1 10
11 RD2 GD2 12
13 BD2 GND 14
15 GND GND 16
