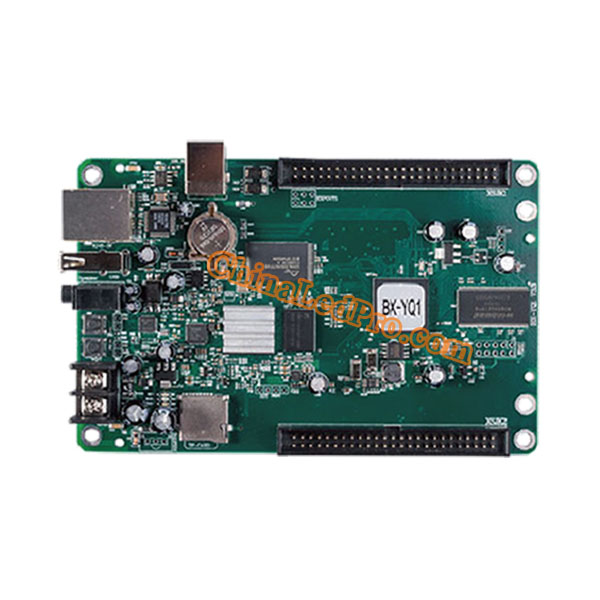

OnBon BX-YQ1 async full color LED board control card is a perfect choice for indoor,outdoor and semi outdoor LED display board applications.
Feautures:
On-board 100M Ethernet port, SD cassette and double USB port;
Hardware configuration: Adopt A8 processor/CPU 1GHz, 512MB DRAM/4GB SD card;
Support video and audio outputting;
Support U/Flash disk/SD card;
Steady performance, simple installation and operation;
Widely used on all kinds LED full color display screens and LED Media full color screen cluster systems;
On the field of network cluster control and 3G wireless cluster control, synchronous controller cannot compare with it...
Features:
Support wide sized screens, abundant display functions;
Best techniques and quality.-40~80C wide working temperature;
Support firmware update online;
Support temperature sensor, temperature&humidity sensor and other sensors;
Support IR controller.
Technical parameters:
Product name BX-YQ1 asynchronous full color controller
Products status Put into the market in March, 2014.
Control area 256*256
Gray scale 65536grade
Screen types All kinds of full colors led screen
Memory storage With 4GByte SD card, support U/flash disk or import the programs to the SD card
Software function Groups cluster management/multi-program editing/multi-area display/multi-language version
Program type Normal/Shared program
Program quantity Support 512 programs, each program with 8 areas
Area type Graphic/subtitle/video/time/clock/timer/temperature/temperature & humidity/weather forecast
Frame mode The colorful and active area frame
Clock mode Dial/in Chinese and English/timer (all support multi-groups)
Communication port Support 100M Ethernet and 3G wireless sending
Interface 2nos 50IN port, 16nos RGB data
Sensor supported Temperature/temperature & humidity
Remote control Select program/lock screen/brightness adjustment/power on & off/screen test
Bright regulation 8grades brightness, support manual and auto-timing adjustment/remote control
Power on/off Support auto-timing power on & off/software power on & off/remote control
Working voltage 5V(3.5V-6V wide voltage; we suggest supply power alone to the card)
Maximum power ≤4W
Working temperature -40°C~80°C
SDK Support DLL, or part of the protocol
Software LedshowYQ 2014
User manual "LedshowYQ 2014 user manual"
